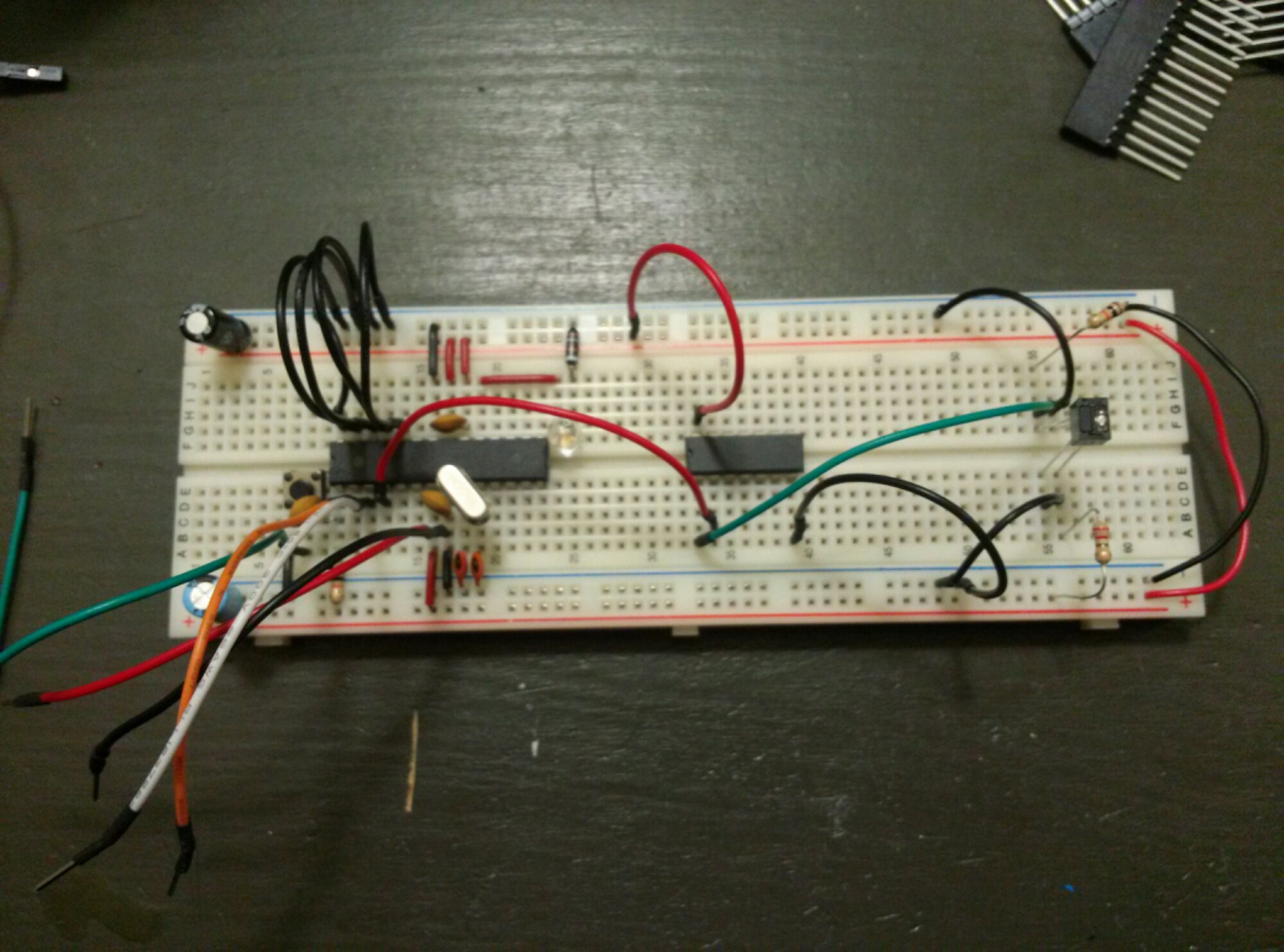

Breadboarded wheel encoder. ATMega328 on the left, 74LS14 in the middle, QRD1114 on the right.

protoboard

QRD1114 on a radio shack proto board. So far it seems to work as expected. Guess it’s time to build the second one.
